Quick answer
A TT30 outlet normally means a NEMA TT-30R: a grounded, straight-blade RV receptacle rated 30A at 125V for nominal 120V service. It uses one hot, a neutral, and a ground and mates with a TT-30P RV cord plug. It is not a 240V dryer outlet or an L14-30 outlet. Confirm generator continuous output and the complete RV load and grounding plan before connecting.
TT means travel trailer, not a generic 30 amp outlet
Leviton identifies TT-30R as a 30 amp, 125 volt, two-pole, three-wire grounding receptacle for recreational vehicles. The mating plug on a typical 30 amp RV cord is TT-30P. Read those markings instead of identifying the device only from angled blades or an online photograph.
A TT-30 connection uses one hot conductor, one neutral, and one equipment grounding conductor. It does not supply two opposing hot legs and does not create 240V. This distinction controls what adapters and downstream equipment can be considered.
TT-30 is not a dryer outlet and must never receive 240V
Older NEMA 10-30 dryer connections and TT-30 devices are not the same system. Similar amperage and a superficial resemblance do not establish compatibility. Applying 240V to an RV designed for a TT-30 125V source can damage equipment and create fire or shock hazards.
Before connecting at a generator, campground pedestal, adapter, or extension, confirm the full NEMA designation and measured or documented source voltage using procedures appropriate for the equipment. If a device is unmarked, damaged, altered, or wired inconsistently with its documentation, stop and obtain qualified inspection.
Why a TT30 outlet is called 120V when its device rating says 125V
The two numbers describe different things: 120V is the nominal supply, while 125V is the receptacle rating. Champion’s generator documentation describes its TT-30R as a 120V AC RV outlet; Leviton rates the TT-30R device at 125V. Neither description means the connection supplies 240V.
Compare the full designation before buying a cord. TT-30 and L5-30 serve the same nominal voltage class but have different mating patterns. L14-30 adds a second hot conductor for a split-phase path. An L14-30-to-TT-30 adapter must be specifically designed to deliver the RV’s permitted 120V supply; a direct connection or improvised wiring is not a substitute.
| Outlet family | Device rating | Conductors | Mating style |
|---|---|---|---|
| TT-30R | 30A, 125V; nominal 120V RV service | One hot, neutral, ground | Straight-blade TT-30P |
| L5-30R | 30A, 125V; nominal 120V service | One hot, neutral, ground | Locking L5-30P |
| L14-30R | 30A, 125/250V; nominal 120/240V service | Two hots, neutral, ground | Locking L14-30P |
A TT-30 generator outlet is a direct interface, not a capacity promise
A generator with TT-30R can accept a matching TT-30P RV cord, but the usable continuous power is governed by the generator rating on the selected fuel, its breaker, ambient conditions, altitude, and any simultaneous load on other receptacles. The outlet label alone does not prove full 30 amp continuous output.
Build an RV load schedule that includes the converter or battery charger, refrigerator operating mode, water heater, microwave, receptacles, and air-conditioner running and starting demand. High-demand appliances may need to be sequenced rather than operated together.
Use adapters only when source and destination stay electrically compatible
An L5-30 generator source can sometimes serve a TT-30 RV through a listed L5-30P to TT-30R adapter because both systems are 125V three-wire configurations. The adapter still has to preserve grounding and carry the intended current, and the complete load remains limited by the generator.
A 5-20 source can provide limited shore power through a listed RV adapter, but it does not become a 30 amp source. A 14-50 source-to-TT-30 adapter must be a purpose-built product that delivers the correct 125V path. Never improvise conductor bridges or use an adapter whose internal connection and ratings are not documented.
Work out usable RV power separately from the TT-30 marking
At nominal 120V, 30A corresponds to 3,600 VA. That is connector arithmetic, not a statement that every generator with a TT-30R supplies 3,600 continuous watts. Leviton specifies the device family; the generator manual specifies the source. Loads with a power factor below one also need an apparent-power check.
For an invented example, assume a generator is rated for 2,400 continuous watts on the fuel in use and an RV load group draws 1,900 watts at an assumed power factor of one. Only 500 watts remain in that continuous budget, even though the receptacle carries a 30A marking. A 900-watt additional load would raise demand to 2,800 watts and exceed the source rating. Compressor starts, site derating, outlet limits and any prescribed reserve still need separate checks.
| Check | Example | Meaning |
|---|---|---|
| Connector arithmetic | 120V × 30A = 3,600 VA | Identifies the nominal connection scale |
| Fuel-specific continuous source | 2,400W assumed | Controls this example running budget |
| Existing RV demand | 1,900W assumed | Leaves 500W before reserve and derating |
| Proposed extra load | 900W assumed; total 2,800W | Does not fit the assumed source |
Inspect the RV power path before every generator connection

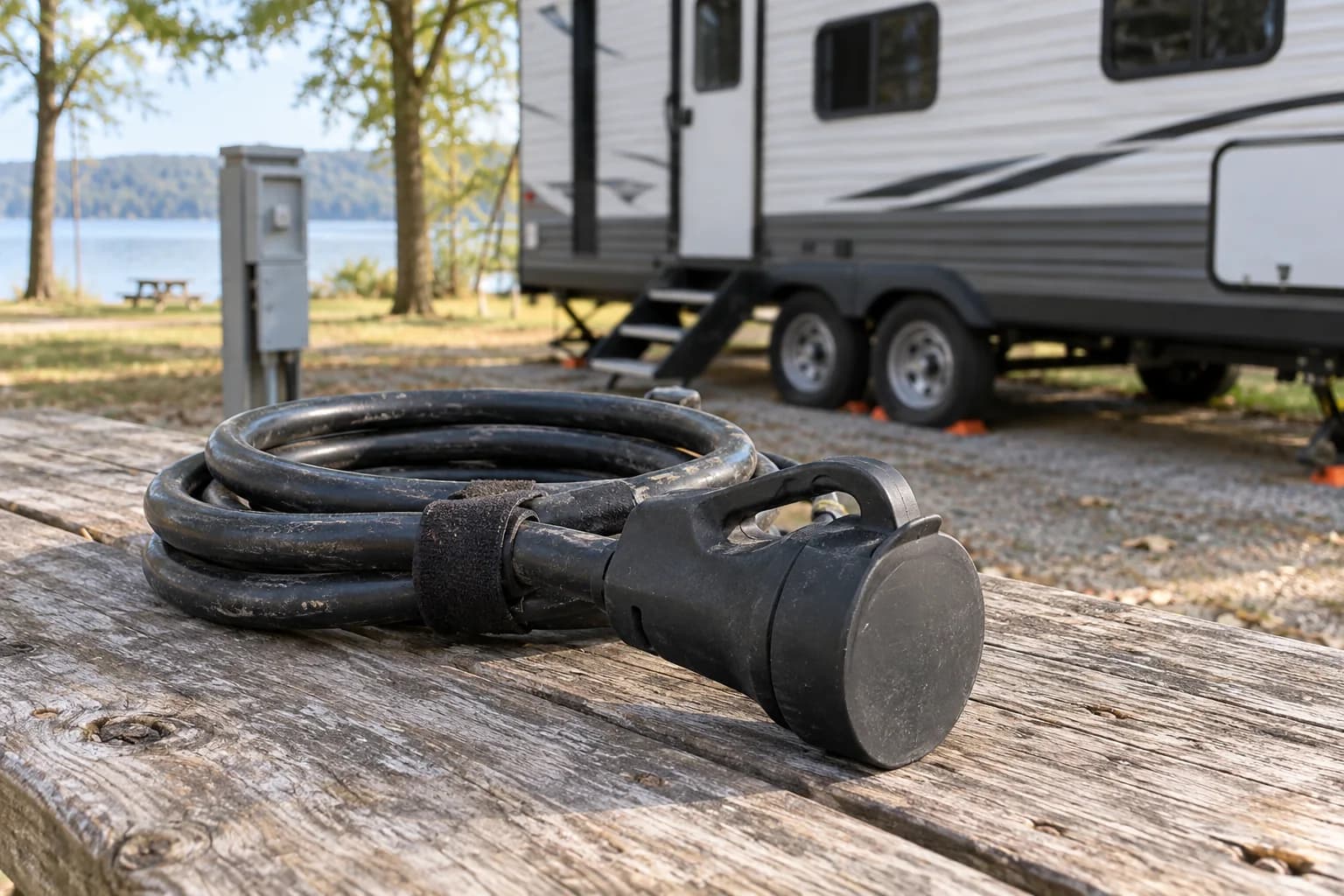

Inspect the generator receptacle, plug blades, strain relief, flexible cord, surge or energy-management equipment, RV inlet, and visible wiring for heat damage, looseness, moisture, or missing grounding features. Keep connections dry and supported so the cord does not pull on the generator panel.
Operate a combustion generator outdoors in its approved location. Follow the generator startup sequence, normally with RV loads disconnected or switched off when the manual requires it. Add loads deliberately and investigate repeated breaker or GFCI trips rather than bypassing protection.
Frequently asked questions
Common questions
What is a TT30 outlet?
It is usually a NEMA TT-30R receptacle for a 30 amp RV cord with a TT-30P plug. The device is rated 125V and serves nominal 120V loads using one hot, a neutral, and a ground. Read the permanent marking before relying on its appearance.
Is a TT-30 plug 120V or 240V?
TT-30 is rated 125V and is commonly called a 120V RV connection. It is not a 240V connector.
Is a TT30 outlet the same as an L14-30 generator outlet?
No. TT-30 is a straight-blade, three-wire 125V family. L14-30 is a locking, four-wire 125/250V family with two hot conductors. A compatible, purpose-built adapter must provide the correct RV voltage; the two plugs do not interchange.
Can I plug a 30 amp RV directly into a generator?
Yes when the generator provides a correctly rated TT-30R, the RV cord is TT-30P, and the generator output, grounding instructions, cord, and RV load plan all agree.
Can a 20 amp generator outlet power a TT-30 RV?
A listed adapter can provide limited 125V shore power, but the system remains limited to the 20 amp source and generator capacity. Air conditioning and other large loads may not be available.
Is TT-30 the same as L5-30?
No. Both can be 30A 125V three-wire configurations, but TT-30 is straight-blade and intended for RV service, while L5-30 is a locking family. A listed adapter is required between them.
Does a TT-30 generator outlet guarantee 3,600 watts?
No. At nominal 120V, 30A is 3,600 VA of connector arithmetic. Use the generator’s continuous rating on the selected fuel, individual outlet limits, power factor, site derating and starting requirements to establish usable power.
Primary references
CordFind summarizes connector specifications and public safety guidance. Always follow the instructions supplied with your equipment.
- Leviton: NEMA TT-30R Product 7313
- Leviton: TT-30R Technical Product 7313-S00
- Leviton: L5-30R Product 2610
- Leviton: L14-30R Product 2710
- Champion: 200989 Generator Manual, 120V TT-30R Outlet
- Cummins: RV Generator Handbook
- CPSC: Generator and Engine-Driven Tool Safety
