Quick answer
Read the complete molded designation. L6-30P is the plug and L6-30R is the receptacle. Both are 30A, 250V, two-pole, three-wire grounding devices. Use them only for equipment and distribution paths specifically designed for that voltage and conductor arrangement. An adapter cannot create a neutral or provide genuine 120/240V split-phase service.
Read L6-30P and L6-30R as complete designations
The L identifies a locking configuration, 6 identifies the voltage and conductor family, 30 identifies the current class, and the final P or R identifies plug or receptacle. Leviton lists its L6-30R as a 30A, 250V, two-pole, three-wire grounding receptacle for industrial applications that include generators, transfer equipment, and compressors.
Do not identify a worn device from blade count or a distant photograph. Find the molded code and electrical rating on the generator, cord end, inlet, appliance, or distribution equipment. Replace an unreadable or damaged device through the equipment manufacturer or qualified service path.
L6-30 and L14-30 cannot serve the same electrical arrangement
L6-30 carries two hot conductors and equipment ground for a nominal 250V load. L14-30 carries two hot conductors, neutral, and equipment ground for nominal 125/250V split-phase service. Both can carry a 30A label, but the available voltages and conductor functions differ.
A listed adapter may sometimes connect a verified 240V load to a compatible source, but it cannot create a missing neutral or authorize 120V loads. The generator winding, selector position, breaker, cord, destination, grounding, and equipment instructions must agree before any adapter is considered.
| Check | L6-30 | L14-30 |
|---|---|---|
| Nominal family rating | 30A, 250V | 30A, 125/250V |
| Conductors | Two hots and ground | Two hots, neutral and ground |
| 120V line-to-neutral load | Not available | Possible when system supports it |
| Direct physical fit | No | No |
Confirm the load before choosing a cord or adapter
Record the equipment input voltage, phase, frequency, current, plug designation, starting demand, duty, and grounding instructions. A 30A connector does not prove that a generator has enough engine or alternator capacity for a motor, welder, compressor, heater, or distribution panel.

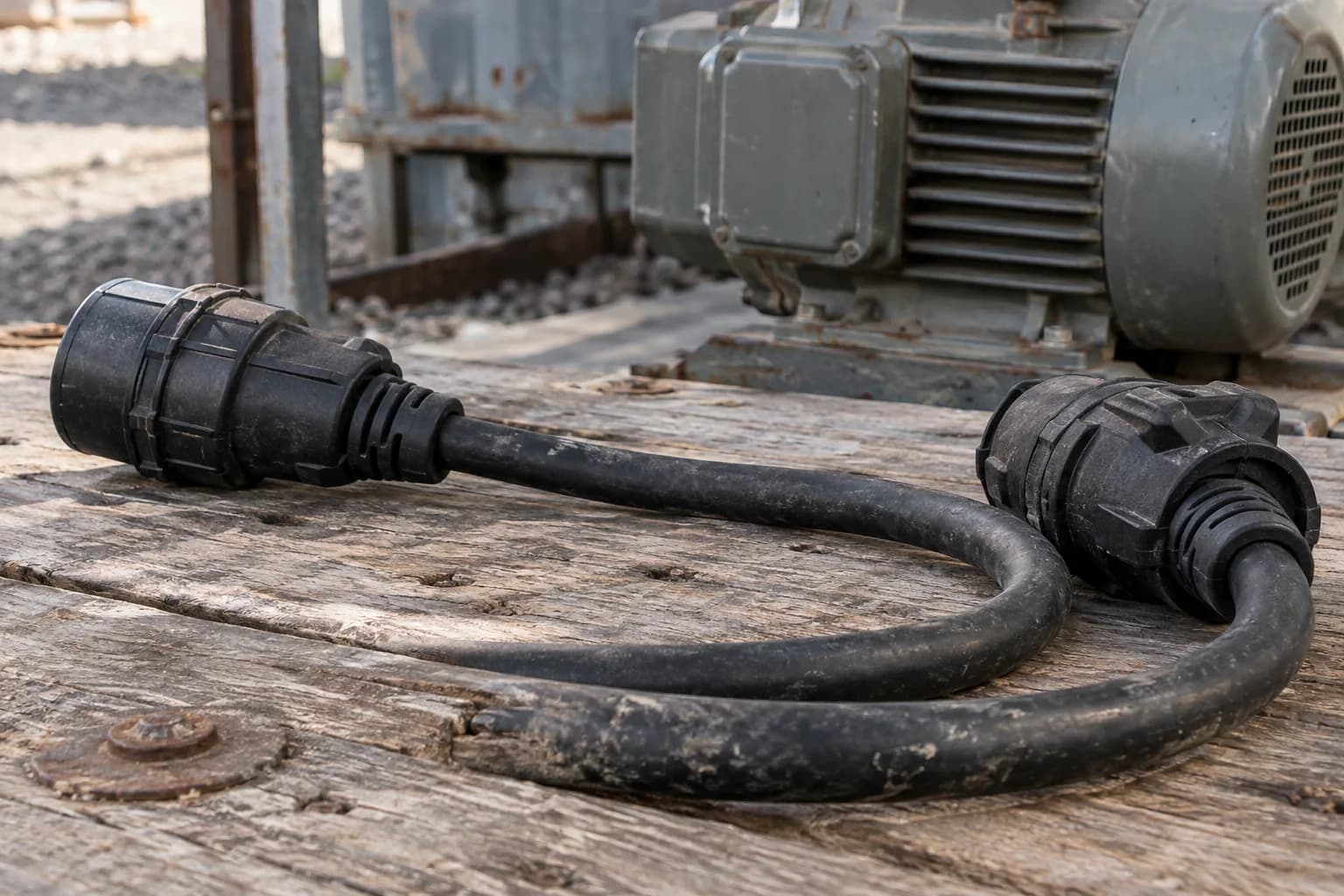

Inspect the entire cord assembly for conductor size, length, jacket, environment rating, strain relief, and intact grounding. Long runs and motor starts can create voltage-drop and transient limits that are not visible in the connector designation.
Stop when a neutral or different voltage is required
Do not bridge conductors, repurpose equipment ground, file or bend blades, replace the receptacle with a different family, or rely on a homemade adapter. Those changes can defeat the configuration safeguards and mislead the next operator.
Building wiring, transfer equipment, temporary distribution, and uncertain equipment connections require a qualified review. De-energize the complete path before inspection and follow the generator and load manufacturers together.
Frequently asked questions
Common questions
Is NEMA L6-30 a 120V or 240V plug?
It is a 250V-class locking family commonly used on nominal 240V systems. It does not provide a neutral for 120V line-to-neutral loads.
What is the difference between L6-30P and L6-30R?
L6-30P is the plug and L6-30R is the receptacle. They are mating roles within the same family.
Can L6-30 connect to L14-30?
They do not directly mate. Any proposed listed adapter still requires confirmation that the source and load use the same voltage, phase, conductor functions, grounding, and capacity.
Can I replace an L6-30 generator outlet with L14-30?
No connector replacement can add a neutral, change the winding, increase the breaker rating, or create split-phase output. Follow the generator manufacturer and qualified service procedure.
