Quick answer

Read the rating plate, wiring diagram, receptacle schedule, breaker ratings, and manual. Confirm voltage, phase, frequency, continuous and starting watts, 240-volt current, 120-volt per-leg current, neutral and grounding configuration, GFCI, selector-switch behavior, and outlet conductor count. Match the exact load voltage and starting demand, then verify the cord, inlet, transfer equipment, conductors, protection, neutral, and load balance. Never use an adapter to create a voltage the generator does not produce.

Electrical conversion worksheet

Convert entered kVA to kW and line current

Use the exact nameplate voltage, phase, apparent-power rating, and power factor. This arithmetic does not calculate motor-starting kVA, transient response, per-leg split-phase balance, harmonic current, or generator derating.

Entered apparent power12 kVAVoltage and current capacity screen
Real power at entered PF9.6 kW12 kVA × 0.8 PF
Calculated line current50 ASingle-phase formula
Formula divisorVDo not use three-phase math for split-phase loads
Nameplate and application verification required

Conversion does not select a generator

Confirm duty rating, selected-fuel output, motor starts, nonlinear loads, voltage and frequency recovery, phase balance, outlet or terminal limits, protection, cables, transfer equipment, and site derating.

Single phase: A = kVA × 1,000 ÷ V. Balanced three phase: A = kVA × 1,000 ÷ (√3 × V). Real kW = kVA × power factor. Actual current can differ with waveform, imbalance, efficiency, and load behavior.

Common system120/240V split phase
VerifyPer-outlet and per-leg current
Four-wire pathTwo hots, neutral, ground
Adapter limitCannot create missing voltage
DECISION PATHUse the evidence in the right order01STEP 1Identify the outputsystem before looking atplug02STEP 2Calculate current at theactual outlet and breaker03STEP 3Keep 120-volt loadsbalanced across the twolegs04STEP 4Match every component inthe four-wire connectionpath
Follow the decision in order; a later check cannot repair a failed earlier check.

Identify the output system before looking at plug shape

Record whether the generator provides 120/240-volt single-phase split-phase output, 240 volts only, 120 volts only, or three-phase output. Confirm frequency, grounded conductor, receptacle designations, selector switch, and conductor count. Similar round locking connectors can represent different voltages and wiring.

For a common 120/240-volt split-phase source, the two ungrounded conductors measure 240 volts between them and each measures 120 volts to neutral. The equipment grounding conductor has a protective role and is not a normal return conductor.

Calculate current at the actual outlet and breaker

Single-phase current screening uses amps equals watts divided by volts, but the available current is limited by the generator continuous rating, selected mode, outlet, breaker, winding, and manual. A 7,200-watt 120/240-volt rating suggests 30 amperes at 240 volts only if the exact continuous rating and output path support it.

Starting watts may be available only briefly and do not raise the continuous breaker or connector rating. Verify motor starting against voltage recovery and other running loads. Do not select a cord or inlet from peak watts.

BEFORE YOU ACTKeep four checkpoints visibleREAD120/240V split phaseDo not infer missing data.CALCULATEPer-outlet andper-leg currentDo not infer missing data.VERIFYTwo hots, neutral,groundDo not infer missing data.CONFIRM4 primary referencesOpen and verify the source.
Keep equipment labels, calculations, system limits, and primary references separate.

Keep 120-volt loads balanced across the two legs

A 240-volt load uses both legs, while 120-volt loads use one leg and neutral. The total generator watt number can look acceptable while one leg or one winding is overloaded. Build a panel schedule showing each 120-volt load by leg and each 240-volt load across both.

A voltage selector can change which outlets operate and how winding capacity is allocated. Follow the exact sequence with loads disconnected as required. Never move or modify panel circuits solely from a generic balancing example.

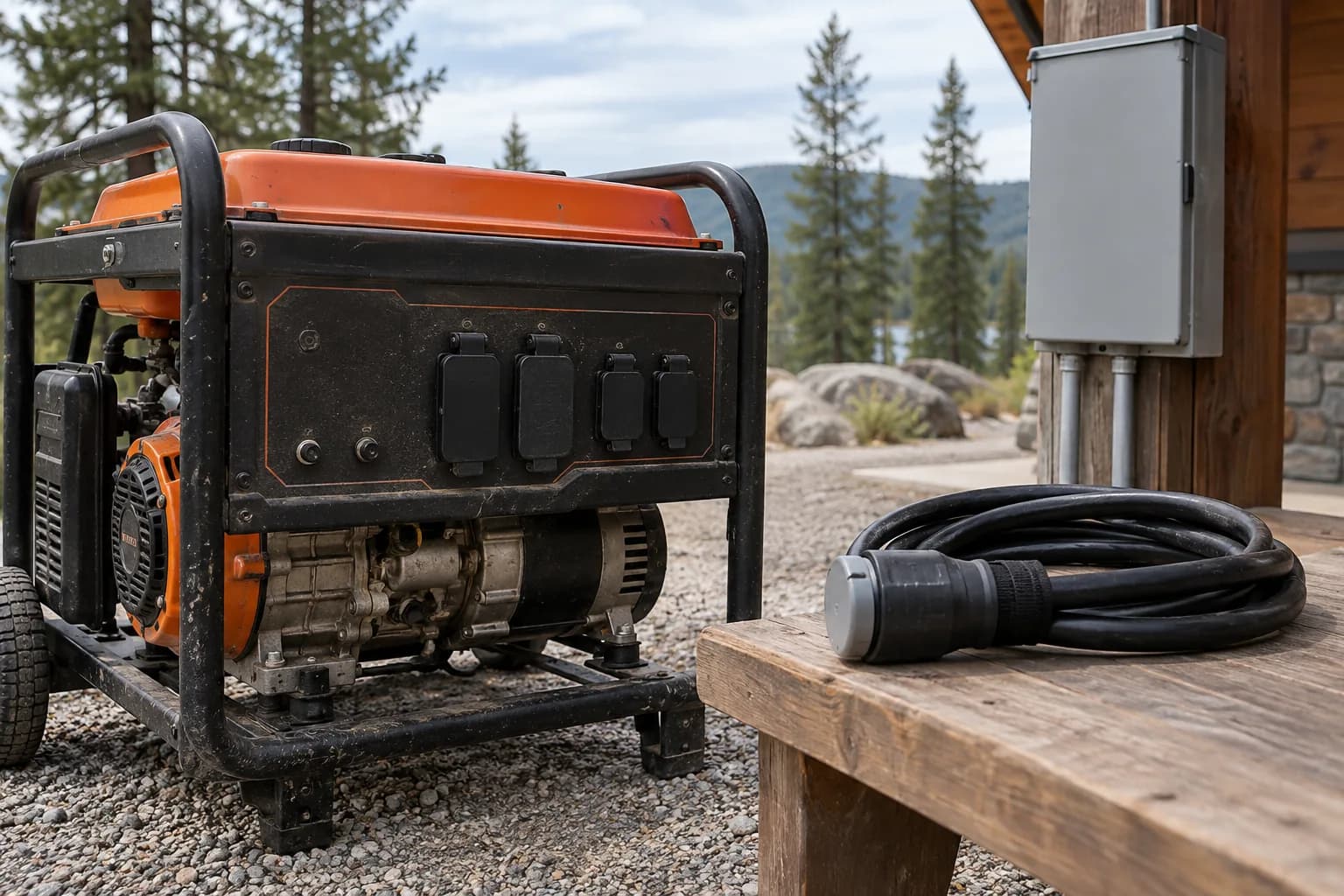

Match every component in the four-wire connection path

Verify generator receptacle, plug, cord, inlet, transfer equipment, breaker, conductors, panel, neutral treatment, grounding, and labels. A NEMA L14-30 and a NEMA 14-50 differ in form and current rating, and neither designation proves the generator has enough output for the desired load.

Building circuits require approved transfer equipment that prevents utility backfeed. A dryer, range, or other household receptacle is not a generator inlet. Never use a male-to-male cord or an adapter that combines, omits, or repurposes conductors.

Verify the load’s voltage, phase, controls and start event

Pumps, HVAC equipment, welders, compressors, EVSE, and other 240-volt loads can have high starting demand, electronic controls, minimum voltage, power factor, or waveform requirements. Breaker size alone is not actual load, and horsepower alone is not a complete electrical specification.

Use manufacturer running and starting data and test the approved system under representative simultaneous loads. Apply fuel, altitude, and temperature derating. Stop for voltage instability, repeated trips, overheated connectors, GFCI faults, control alarms, or abnormal generator response.

Frequently asked questions

Common questions

How many amps can a 240V generator supply?

Divide the exact continuous single-phase watt rating by 240 as a screen, then apply the lower outlet, breaker, winding, mode, and manual limit. Peak watts do not set continuous current.

Can a 120V generator be adapted to 240V?

An adapter cannot create missing voltage or a split-phase source. Use a generator designed and rated for the load voltage and connection.

Can a 240V generator also run 120V loads?

A 120/240-volt split-phase model may do so through its listed outlets or transfer path, subject to per-leg balance and limits. A 240-volt-only source may not.

Do I need a neutral for a 240V load?

Some 240-volt loads use only two ungrounded conductors and equipment grounding; others also need neutral for 120-volt components. Follow the exact equipment wiring diagram and approved connection.
