What Size Generator for a 50 Amp RV? Plan Both Legs and AC Starts

The 50 amp label describes the supply, not your camping load

A standard 50A RV shore connection has two hot conductors, a neutral and an equipment ground. The supply provides nominal 120V from either hot to neutral and 240V between the hots. Most RV appliances use 120V, so both sides of the coach panel matter even when no appliance needs 240V.

At nominal voltage, each 50A leg represents 120 × 50 = 6,000 VA; together the supply represents 12,000 VA. It corresponds to 12,000 watts only at an aggregate power factor of 1. Those figures describe the supply ceiling. They do not establish appliance demand, generator startup capability, or permission to load every component continuously to its label.

Read the RV manual and the actual generator output diagram. An installed RV generator can have an output and transfer arrangement specific to that coach. Do not infer its available line-to-line voltage or circuit capacity from the shore cord alone. For a portable source, confirm the full 14-50 designation and every electrical rating; four contacts by themselves are not a compatibility check.

Give every load a leg, a mode and a reason to run

Start with the coach circuit directory and equipment documentation. Have an RV electrical professional resolve an unclear leg assignment rather than opening an energized panel. For each load, record the operating mode, its AC input and whether it can start automatically. The generator size calculator can organize the running-watt total, but the two-leg record below adds a check that a single total cannot show.

Include the converter or inverter/charger. A depleted house battery can change charging demand just when the generator starts. Record AC input at the intended charger setting, rather than treating the charger’s DC output amps as generator input amps. Also identify electric water heating, microwave input, absorption-refrigerator electric mode, tank heaters and any other loads that may come on without a reminder.

Worked example: two ACs, a charger and different leg loads

This is a hypothetical arithmetic example, not a measured RV or a generator recommendation. Assume all listed loads use nominal 120V. Each air conditioner consumes 1,200 real watts while running, with an assumed power factor of 0.90, and has a separately assumed total starting requirement of 3,600 VA. Assume the charger uses 600W at power factor 0.90, lights use 120W at power factor 1, and electronics use 180W at power factor 0.90. The charger, lights and electronics are assumed to have no additional start event in this simplified example.

For each single-phase running load, VA = W ÷ power factor and amps = VA ÷ volts. Keep the watts and VA in separate columns. Summing the stated VA requirements is a planning screen; the actual combined waveform, power factor and transient behavior still need equipment data. Unknown starting watts must not be replaced with a VA value in a watts-only calculator.

Check either AC starting—and the restart you did not schedule

With the example loads running, L1 carries a planning sum of 2,120 VA, about 17.7A, and L2 carries about 1,533 VA, about 12.8A. When the front AC starts, replace its 1,333 running VA with its 3,600 total starting VA. L1 then reaches about 4,387 VA, or 36.6A, while L2 remains at about 1,533 VA. The combined start screen is approximately 5,920 VA.

When the rear AC starts, L2 instead reaches 3,800 VA, or about 31.7A, and L1 stays at 2,120 VA. The combined screen is again 5,920 VA, but the heavily loaded leg is different. If both compressors can start together after a power interruption, the screen rises to about 8,187 VA. A plan that depends on staggered starts needs an approved control or a reliable operating method; a note to remember the order does not control an automatic restart.

These numbers are not interchangeable with a 5,920-watt surge label. Ask the generator manufacturer to check the documented starting current, duration, voltage recovery and load power factor. An RV AC soft start may reduce a supported compressor’s starting demand after correct installation and learning, but it does not reduce the other continuous loads or raise a receptacle limit. Use verified before-and-after data for the exact pairing.

• Test the front AC start with the permitted rear-AC and charger loads already present.
• Test the rear AC start with the permitted front-AC and charger loads already present.
• Account for thermostat cycling and restart behavior after a brief loss of power.
• Keep loads such as electric water heating or cooking out of the AC-start group when the approved plan requires it.

A fitting adapter does not reproduce a 50 amp pedestal

A generator adapter changes a specific connector interface; it does not increase generator output. A 30A, nominal 120V source has a nominal 3,600 VA ceiling before considering the generator’s own continuous rating and other limits. If an approved RV adapter supplies both coach sides from that source, both sides share the source capacity. They do not become two independent 30A supplies, and that arrangement does not create genuine 240V.

The two-leg example has a 3,653 VA running screen before any AC starts. It therefore cannot be justified on a 30A, 120V source simply because its real-watt total is 3,300W. A larger-rated cord or receptacle does not remove that bottleneck. Reduce the allowed load group or obtain a source and connection approved for the complete plan.

For a 120/240V generator, check its per-leg continuous and starting behavior as well as total output. For an installed generator with separate output circuits, use that model’s circuit limits and the coach transfer design. Do not combine separate outlets, defeat protection, change a neutral bond, or invent a parallel connection to recover an apparent shortage.

Turn the load record into a generator specification

Compare the real running-watt target with the continuous rating on the fuel you will use. Then submit the starting events, leg assignments, current and power-quality requirements for confirmation. Include temperature, elevation, altitude derating where the model specifies it, intended operating hours, charger settings and an explicit reserve. A reserve is extra capacity after the known loads; it cannot stand in for missing compressor data.

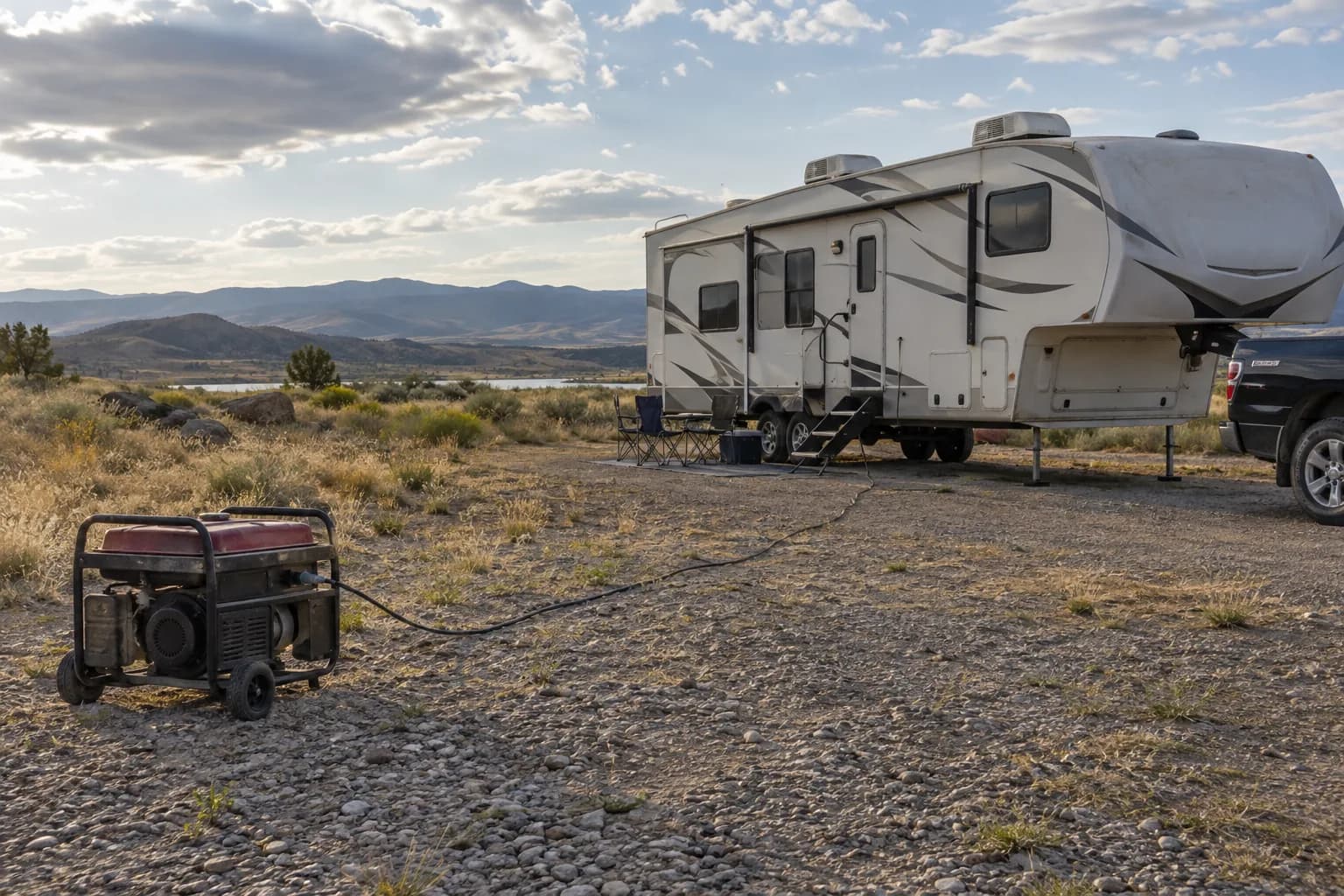

Keep the operating plan short enough to use at a campsite: which loads stay on, which wait, who can change charger settings, and what happens after a trip. Portable-generator placement must remain outdoors, away from occupied RVs, tents, buildings and openings under the manual and current CO guidance. Installed RV exhaust and compartment arrangements follow the exact RV and generator installation instructions. A portable unit is not an approved replacement inside a built-in generator compartment.

For a newly purchased engine-driven unit, complete the documented generator break-in and first-service requirements before relying on it for the trip. That is separate from proving that the coach’s two-leg load plan works. Keep the correct manuals with the load record so another operator can repeat the approved sequence.

Keep a test record that answers the sizing question

Arrange a controlled check using the approved connection and qualified help where measurements require access to live equipment. Record the generator model, fuel, site conditions, coach configuration, battery state, charger mode, running load group, compressor start order, any measured voltage or current, and every alarm or trip. A successful no-load start is not a test of two air conditioners.

Stop for hot or damaged connections, repeated protective trips, unstable output, AC start failures, fuel leaks or exhaust exposure. Change the load plan or have the pairing reviewed; do not keep resetting it until a compressor happens to start. The useful outcome is a confirmed operating envelope for your coach, not a universal generator wattage for every 50 amp RV.
