Quick answer

At 125/250V split phase, a 30A path has a nominal 7,200 VA ceiling at 240V and a 50A path has a nominal 12,000 VA ceiling. Those figures are connector arithmetic, not permission to load every component to that value continuously. Choose from the generator’s actual continuous output, receptacle and breaker, the required load schedule, per-leg limits, cord and installed equipment. Common 30A home-backup paths use L14-30. Common 50A paths may use 14-50 on the generator side and CS6364/CS6365 or CS6375 equipment elsewhere. Confirm every exact label.

120/240V inlet screen

Compare the entered load plan with 30A and 50A paths

Enter running watts, one additional starting event and the generator’s continuous rating for the selected fuel. This screen uses nominal 240V arithmetic and does not size building conductors or approve an installation.

Entered peak event6,000 WRunning load plus one additional start
Planning target7,200 WPeak plus 20% reserve
Nominal line current30 APlanning target divided by 240V
Connector planning screen

30A path remains a planning candidate

Nominal comparison: 30A at 240V is 7,200 VA and 50A at 240V is 12,000 VA. Confirm source receptacle, breaker, per-leg limits, cord, inlet, conductors, transfer equipment, duty and local requirements.

A 50A inlet does not increase generator output. A 30A source remains limited by its own receptacle and breaker even when a listed connection to higher-rated downstream equipment is possible.

30A at 240V7,200 VA nominal
50A at 240V12,000 VA nominal
Common 30A familyL14-30
50A families vary14-50 and CS types
DECISION PATHUse the evidence in the right order01STEP 1Compare nominal inletarithmetic with usablegenerator02STEP 2Do not use “50 amp” as aconnector designation03STEP 3Build the load schedulebefore choosing the inletrating04STEP 4A future-ready inletstill needs present-daysource
Follow the decision in order; a later check cannot repair a failed earlier check.

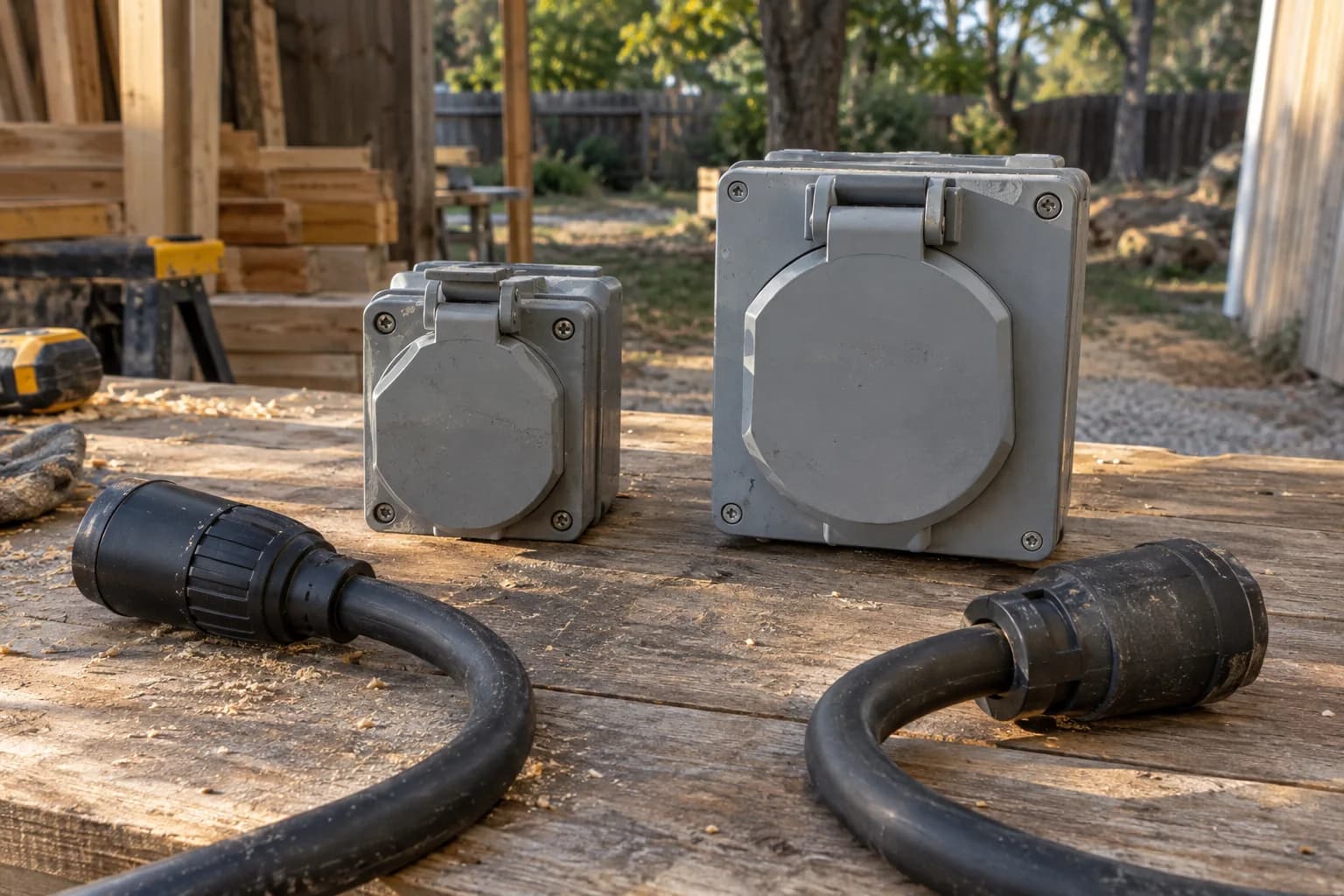

Compare nominal inlet arithmetic with usable generator output

For a compatible 120/240V split-phase path, volts times amps gives 7,200 volt-amps at 30A and 12,000 volt-amps at 50A. The actual system can supply no more than its lowest-rated component and no more than the generator can produce through the selected receptacle and operating mode.

Use the generator’s continuous rating for the selected fuel, not peak starting watts, to screen sustained loads. Then compare the largest starting event, per-leg loading, individual receptacle limits, altitude and temperature derating, and the transfer equipment. A larger inlet does not upgrade a smaller generator breaker or winding.

30A and 50A generator inlet planning comparison
Planning item30A path50A path
Nominal 240V arithmetic7,200 VA12,000 VA
Common home-backup connectorL14-30 locking family14-50 straight blade or CS locking family
Typical cord constructionFour-wire assembly when 125/250V is requiredFour-wire assembly when 125/250V is required
Capacity resultLimited by lowest-rated componentStill limited by generator and complete installed path

Do not use “50 amp” as a connector designation

L14-30 is a 30A, 125/250V, three-pole, four-wire grounding NEMA locking family commonly used on portable generators and inlets. A 50A generator may provide a NEMA 14-50 receptacle, while a heavy-duty cord or inlet path may use California-style CS6365, CS6364, CS6369 or CS6375 devices. The part number and device role matter.

A 14-50 straight-blade receptacle is not the same device as a CS locking connector. Plug, connector, receptacle and flanged inlet suffixes also describe different mating roles. Select a listed cord assembly whose two endpoints match the actual generator receptacle and installed inlet without altering either device.

BEFORE YOU ACTKeep four checkpoints visibleREAD7,200 VA nominalDo not infer missing data.CALCULATE12,000 VA nominalDo not infer missing data.VERIFYL14-30Do not infer missing data.CONFIRM4 primary referencesOpen and verify the source.
Keep equipment labels, calculations, system limits, and primary references separate.

Build the load schedule before choosing the inlet rating

List the circuits that must run, their voltage, running demand and largest additional start. Separate essential, managed and unavailable loads. A gas furnace, refrigerator, lighting and selected outlets may fit a different plan than central air, an electric water heater, well pump and cooking equipment operating together.

A 30A connection can be a deliberate essentials plan rather than an undersized mistake. A 50A path can provide more flexibility, but only if the generator, cord, installed conductors, breaker and transfer equipment support it. Load management may be more appropriate than increasing every component solely for rare simultaneous demand.

A future-ready inlet still needs present-day source protection

A qualified installer may design a 50A inlet and downstream path for a future generator while the current source remains smaller. That does not allow the current generator to exceed its breaker or receptacle rating, and any adapter must preserve voltage, conductors, grounding and protection without energizing unintended circuits.

Document the installed inlet, conductor, breaker and transfer ratings and the exact cord used with each generator. Revisit neutral treatment, GFCI compatibility and per-leg loading when the source changes. An upgrade is a system recommissioning event, not only a new cord purchase.

Require a labeled installation and an operating load plan

Building wiring requires qualified installation, permits and inspection where applicable. The final record should identify the inlet configuration, conductor and breaker ratings, transfer method, neutral treatment, approved generator connection and maximum operating plan. Weather exposure and enclosure rating must match the installation location.

Keep a simple circuit-priority sheet near the transfer equipment. During a test, verify the intended load sequence without exceeding the generator or per-leg limits. The inlet rating is only useful when every user understands which loads remain unavailable or managed.

Frequently asked questions

Common questions

How many watts can a 30 amp generator inlet handle?

At 240V, 30A corresponds to 7,200 VA of nominal connector arithmetic. Actual usable output is limited by the generator, receptacle, breaker, cord, installed path, load type and operating instructions.

How many watts can a 50 amp generator inlet handle?

At 240V, 50A corresponds to 12,000 VA nominally. A 50A inlet does not guarantee that the generator or every connected component can supply that amount.

Can a 30 amp generator connect to a 50 amp inlet?

A listed assembly may be possible when voltage, conductor arrangement, grounding, connector roles and protection are all preserved. The 30A source remains limited to its own rating, and the installed system should be reviewed and labeled.

Is every 50 amp generator connection NEMA 14-50?

No. Generator and inlet systems may use 14-50 straight-blade devices or CS-series locking devices. Read every complete designation before choosing a cord.
