Quick answer
Read the permanent designation on the inlet and generator outlet. Many 50A, 120/240V generator inlet systems use a CS6375-style inlet that mates with a compatible locking connector, while the generator end may use a different configuration such as 14-50. Select the complete cord by both endpoints; never assume the same plug belongs on both ends.

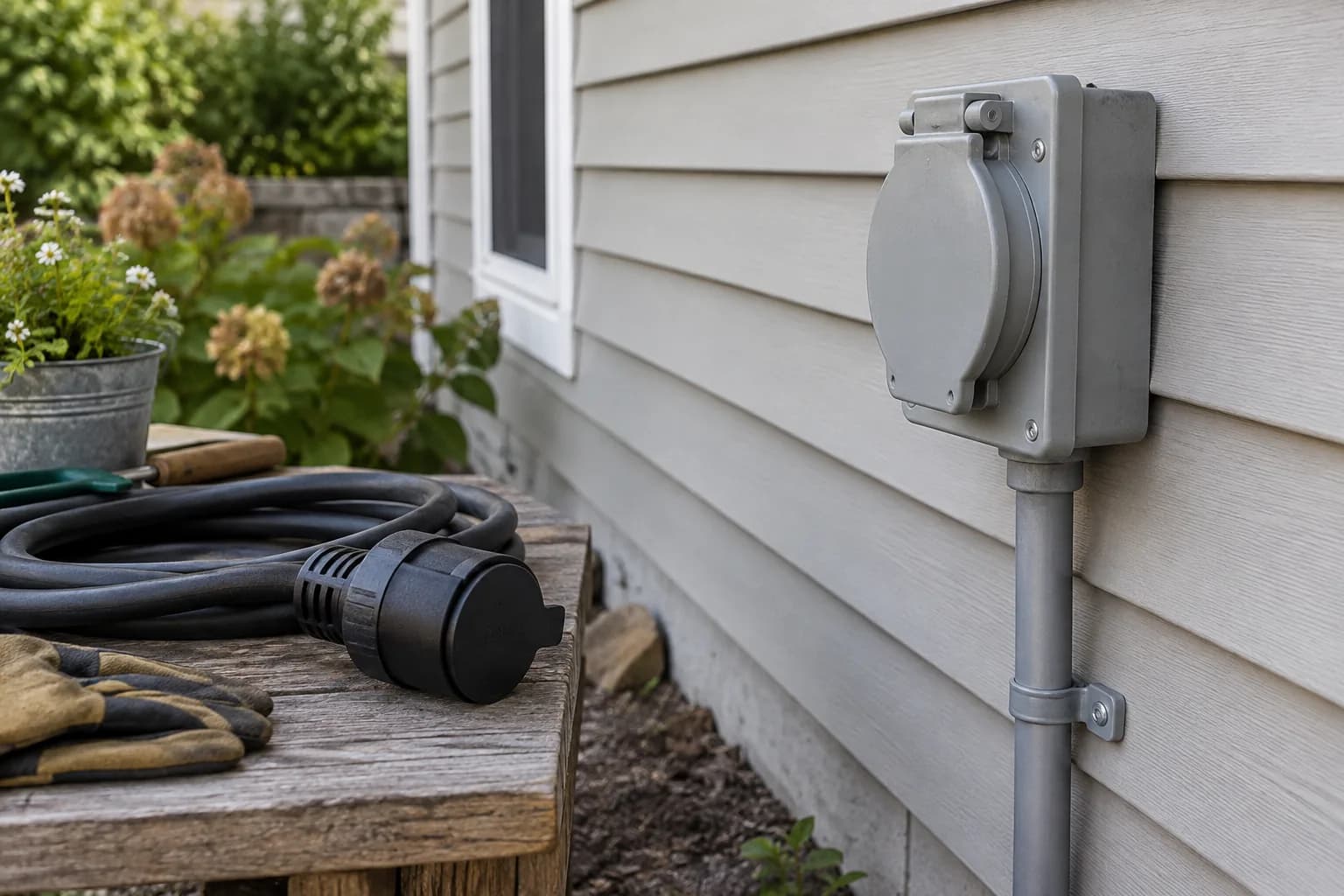

An inlet receives generator power; an outlet supplies it
A power inlet has exposed male contacts behind a protective cover because it receives a female cord connector. A generator receptacle or outlet supplies power to the cord. The two endpoints can use different connector families even when both are rated 50A.
A NEMA 14-50R is a 50A, 125/250V receptacle. It is not automatically the house-side inlet. Manufacturer literature for 50A generator-inlet systems commonly identifies a CS6375 inlet and a mating CS6364/CS6365-style cord connector, while a 14-50 plug may be used at a compatible generator outlet.
Match both ends of the 50 amp generator cord
Record the complete generator receptacle designation and the inlet designation before comparing cords. Then confirm 120/240V capability, four-wire grounding, the cord assembly rating, outdoor suitability, and enough length to keep the generator safely outdoors.
Do not use adapter chains to hide an incompatible endpoint. An adapter cannot create a missing neutral, change voltage requirements, increase generator capacity, or approve a building connection.
- Generator outlet designation and breaker rating
- Power inlet designation and equipment manual
- Cord plug and connector designations
- Voltage, conductor count, grounding, jacket, and length
Choose 30 amp or 50 amp from the system—not from future plans alone
A 50A inlet can support a higher connection rating than a 30A inlet, but the usable power is still limited by the generator, its receptacle and breaker, the transfer equipment, wiring, and connected loads. A larger inlet does not increase generator output.
Likewise, a 30A system may be appropriate when the generator and selected essential loads are designed around a 30A connection. Have the complete load and installation plan reviewed before buying an inlet box.
The inlet box must be part of an approved transfer system
Official inlet-box instructions require qualified installation and state that an inlet used to power a structure must work with transfer equipment. The installer also determines the permitted location, wiring method, conductor requirements, enclosure rating, grounding and bonding, and inspection steps.
Keep the generator outdoors and away from doors, windows, and vents. Inlet location and cord length should support safe generator placement without routing the cord near exhaust, water, sharp edges, or vehicle traffic.
Frequently asked questions
Common questions
Is a 50 amp generator inlet box the same as a NEMA 14-50 outlet?
No. A 14-50R is a receptacle. Many generator inlet boxes use a male CS6375-style inlet that mates with a compatible locking cord connector. Verify the exact designation on the installed equipment.
Can I install a 50 amp inlet for a 30 amp generator?
Do not select from amperage alone. The generator outlet, cord endpoints, voltage, protection, transfer equipment, and installation design must be evaluated as a complete system.
Does an inlet box replace a transfer switch?
No. The inlet is the outdoor cord connection point. Approved transfer equipment is still required to isolate generator power from utility power when supplying building wiring.
Primary references
CordFind summarizes connector specifications and public safety guidance. Always follow the instructions supplied with your equipment.
