Quick answer
Identify the exact pump and motor first. Record voltage, phase, horsepower, service-factor amps, locked-rotor amps or motor kVA code, two-wire or three-wire design, control box or variable-speed drive, and other running loads. Use the motor manufacturer generator table or obtain a written selection from the pump and generator manufacturers. Connect the well circuit only through approved transfer equipment installed for that system.

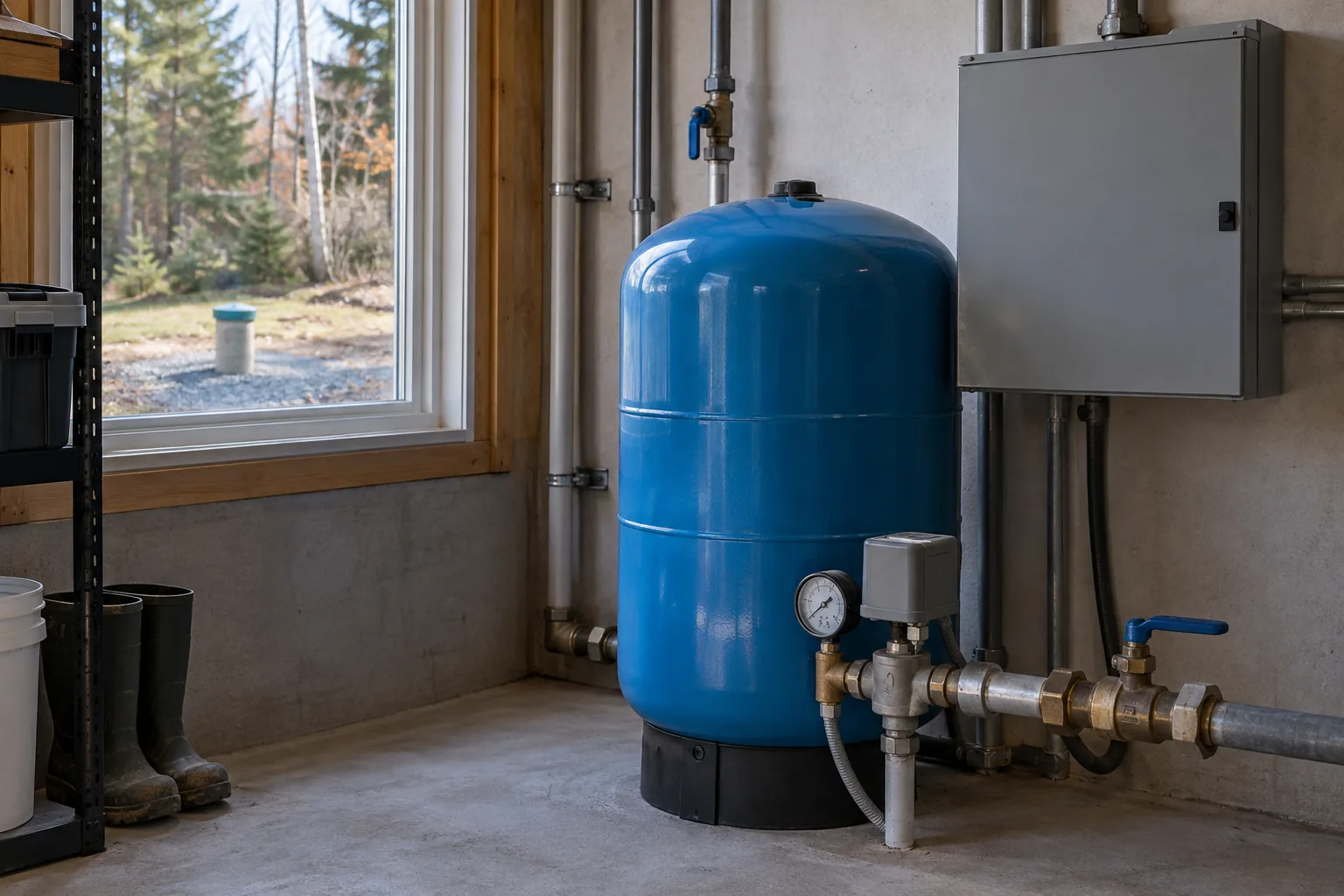

Identify the pump motor and controls before sizing
Find the pump installation record, motor model, control-box label, pressure-system controls, and service manual. Record horsepower, voltage, phase, frequency, service-factor amps, locked-rotor amps or kVA code, and whether the motor is a two-wire, three-wire, permanent split capacitor, split-phase, variable-speed, or another design.
If the pump is down the well and labels are unavailable, ask the installer, well contractor, previous owner, or manufacturer for the record. Do not infer the motor only from a pressure-switch rating or breaker handle. A breaker size is not the running current and does not identify the start requirement.
Franklin Electric maintains an Application, Installation, and Maintenance manual for submersible motors. Xylem Goulds publishes generator recommendations that distinguish motor and generator types. Use the current document for the actual equipment.
Use starting kVA and transient behavior, not watts alone
A motor draws elevated current while it accelerates. Multiplying measured or published volts by amps gives an apparent-power screen in volt-amps, but that arithmetic is not a final generator size. Generator voltage dip, excitation and regulation, engine response, motor torque, power factor, frequency recovery, cable impedance, and control behavior determine whether the pump starts successfully.
Xylem says the required generator size varies by generator type and asks users to provide motor kVA code, service-factor amps, locked-rotor amps, phase, frequency, and motor type when consulting the generator manufacturer. Its tables distinguish externally and internally regulated generators and note a separate rule for certain split-phase two-wire motors.
This is why two pumps with the same horsepower can receive different generator recommendations. Use the manufacturer table or written selection, not a generic horsepower multiplier.
| Data | Source | Selection role |
|---|---|---|
| Motor model and horsepower | Installation record or motor documentation | Finds the correct manufacturer table |
| Voltage, phase, and frequency | Motor and control labels | Must match the generator system |
| Service-factor amps | Motor table or label | Describes loaded running current |
| Locked-rotor amps or kVA code | Motor documentation | Defines the start event |
| Two-wire, three-wire, control box, or drive | System diagram and labels | Changes starting and control behavior |
| Generator regulation and fuel | Generator manufacturer | Changes transient capacity and derating |
Voltage, control boxes, and variable-speed drives change the plan
Many residential submersible well pumps operate at 230 or 240V, but do not assume the voltage. A 120V generator receptacle or adapter cannot supply a 240V pump. The generator, receptacle, cord or inlet, transfer equipment, breaker, conductors, and motor must form one compatible system.
Three-wire motors can use an above-ground control box with starting components selected for the motor. Two-wire motors place different starting components in the motor. Constant-pressure and variable-speed systems add electronic drives with their own source, grounding, fault-current, waveform, and generator-size requirements.
Do not bypass a control box, pressure switch, overload, drive, disconnect, or protection device to make a generator test work. Provide the full system model numbers to the pump, drive, and generator manufacturers.
Model the pump start while essential loads are already running
A well pump rarely operates alone during an outage. Refrigeration, furnace blower, lighting, communications, and battery charging may already be on when the pressure switch calls for water. Add those running loads to the pump start event.
Prevent another large motor from starting at the same time when the system permits controlled staging. Water heating, clothes drying, electric cooking, central air conditioning, and other large loads may need to remain off. A pressure tank in good condition can reduce frequent cycling, but it does not change the motor start demand.
Use a reserve for uncertainty and derating, then ask the generator manufacturer to confirm the transient event. The worksheet intentionally reports apparent-power arithmetic rather than claiming a generator watt size.
Frequency and voltage recovery affect pump operation
Xylem notes that frequency matters because pump speed affects flow, head, horsepower, and current. A generator that slows severely during start can change both electrical and hydraulic behavior. Excessive voltage dip can prevent acceleration and heat the motor.
Long generator cords, inlet feeders, branch conductors, and the down-well motor cable all contribute impedance. A generic extension-cord chart does not size the installed well circuit or submersible cable. Have conductor voltage drop and protection reviewed as part of the complete system.
Stop if the generator labors without recovery, frequency or voltage remains abnormal, the pressure system behaves unexpectedly, a breaker trips, the control faults, or the motor repeatedly fails to start. Repeated stalled attempts can damage equipment.
Use approved transfer equipment and a witnessed test
A hardwired well circuit requires approved source isolation. Depending on the installation, that may be a selected-circuit transfer switch, emergency-load panel, automatic transfer equipment, or a panel-specific approved interlock system. The equipment must support the pump voltage, conductors, protection, neutral and grounding arrangement, and local requirements.
Have a qualified electrician and well or pump professional commission the backup plan. Start the generator before applying the pump load and remove the pump load before generator shutdown when the equipment instructions call for that sequence. Record voltage, frequency, start behavior, other loads, generator mode, and any fault.
Keep a water-outage plan too. Store safe drinking water, know how pressure and treatment equipment behave without power, and protect the plumbing system in freezing conditions. A generator test should not be the first time the household learns which controls depend on electricity.
Frequently asked questions
Common questions
What size generator is needed for a well pump?
Use the exact motor manufacturer generator table or a written selection based on voltage, phase, service-factor amps, locked-rotor amps or kVA code, motor type, controls, generator regulation, and other running loads.
Can I size a well pump generator from horsepower?
No. Horsepower alone does not identify starting current, voltage, motor design, control box, generator regulation, cable effects, or acceptable voltage and frequency recovery.
Can a 120V generator run a 240V well pump?
Not from a 120V-only output. The source and the complete connection must provide the voltage and conductor arrangement required by the exact pump system.
Why does a well pump need more generator capacity to start?
The motor draws elevated current while accelerating. The generator must maintain sufficient voltage and frequency through that transient while other running loads remain connected.
Does a soft start work on a well pump?
Only use motor controls or drives specifically approved for the exact pump system. Do not add a generic soft starter to a submersible motor or control box without manufacturer engineering guidance.
