Generator Wheel Kits: Match the Frame, Model Year and Brackets

Identify the frame you actually own

Photograph the dataplate, record the full model and serial number, and find the manufacture date or ask support to decode it. The purchase year is not necessarily the manufacture year. Also record existing accessories, changed feet and any previous frame repair. A used generator may no longer have the original mounting arrangement.

Look for a wheel-kit entry in the generator manual or manufacturer catalog. If none is listed, ask support. Send photos of the complete frame and three mounting areas. Follow approved handling instructions or obtain qualified help if a photograph requires repositioning the heavy unit.

Champion 40065 has manufacturer and date limits

Champion’s 40065 page says the kit replaces C40065, is limited to Champion generators manufactured after January 2013, and does not fit other manufacturers’ generators. Its stated application is most Champion open-frame units in the 2800–4800W range. It lists 8-inch never-flat wheels, a folding handle and a support leg with vibration mounts.

The word “most” leaves work to do. Record the model and date, then compare the mounting points with the official fitment guide. A generator that satisfies the wattage and date screens still needs the bracket check. If the date cannot be established or a mounting point differs, obtain confirmation for that exact unit before purchase.

Check all three mounting areas in the fitment guide

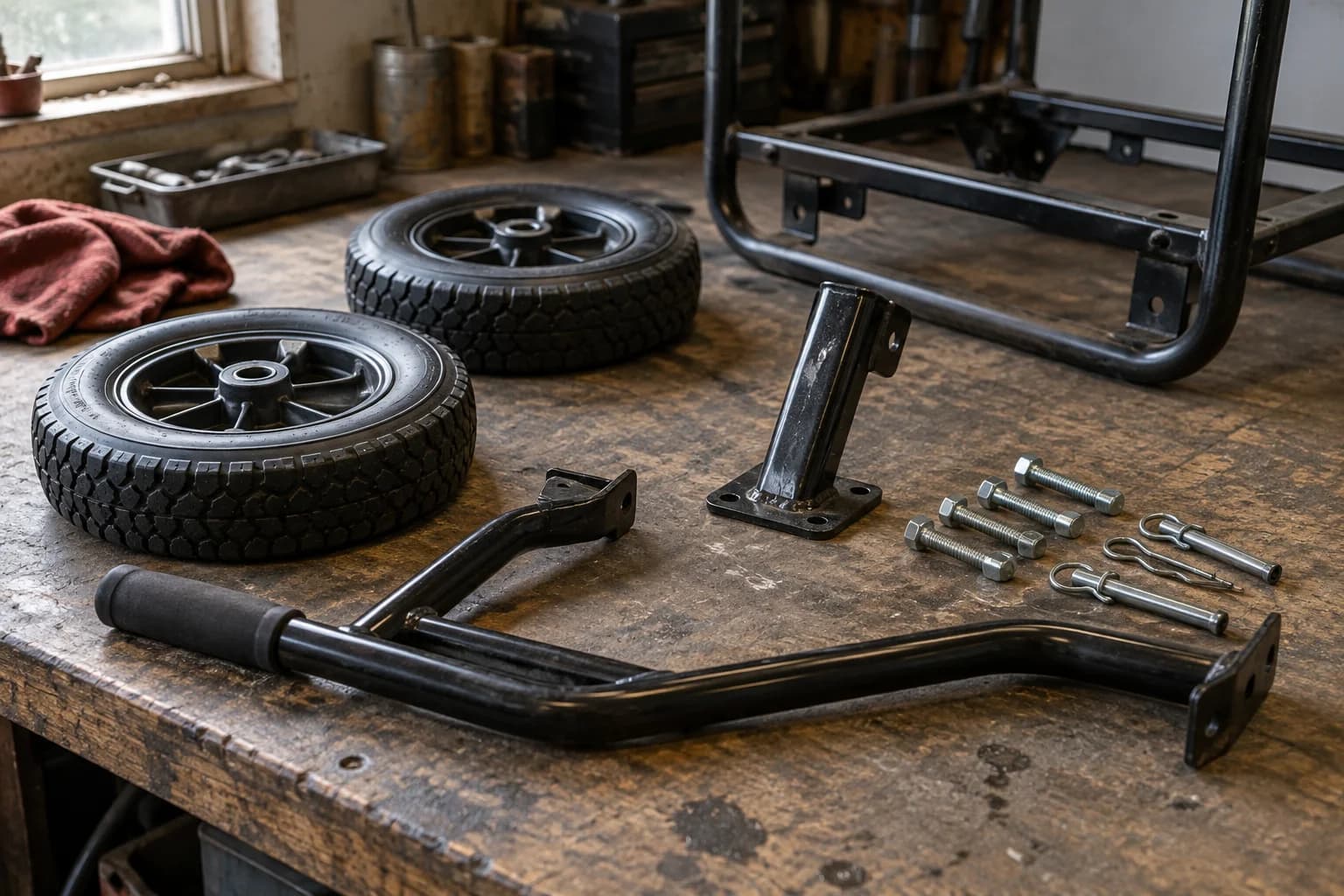

Champion’s one-page 40065 fitment guide identifies two handle styles and labels the handle mount bracket, support-leg mounting holes and wheel mount bracket. It notes that the generator’s brackets may not look exactly like the pictures. Use the manufacturer’s original diagram for the comparison; the generic editorial image above cannot establish any of these features.

The worksheet keeps a partly completed match from becoming an order. Mark each field confirmed, missing or unclear. An available wheel bracket does not supply a missing handle mount, and attaching two wheels without the correct support leg is not a complete kit installation.

Kit revisions can change the installation parts

The 40065 product page separates pre-2021 and 2021-and-later installation manuals. The latter document, revision 20250723 when reviewed, supplies two alternative handles: one bolts on and the other uses a roll pin and R-clip. Only the applicable handle is installed. The earlier manual depicts one bolted handle.

Inventory the delivered kit against its manual before beginning. A missing clip, damaged leg or mixed package needs correction. Keep the correct document open during assembly instead of working from a retailer’s picture or an older video. Do not infer a tightening torque, bolt direction or substituted fastener from a different revision.

Honda’s catalog offers another clear part-number example: it lists 06425-Z43-001AH for EB2800i/EG2800i and 06425-ZS9-020AH for EU3000is as two-wheel kits. Those separate entries illustrate why a brand name alone cannot identify the accessory. Confirm the current application and installation document before ordering either.

Use kit-specific preparation, then restore oil correctly

The current 40065 manual requires draining oil and fuel before its prescribed repositioning step. It makes the side that faces up dependent on the generator model. Its support-leg directions also address models with existing rubber pads or welded hardware. Follow the applicable illustrated procedure, including fastener orientation, rather than treating those details as optional.

A separate example shows why model identity matters: the manufacturer URL named 201097-im-english.pdf currently returns a Black Diamond BD201097 manual, revision 20241016. That document also requires oil and fuel drainage but describes its own assembly. It is not a substitute for the 40065 instructions.

Prepare an approved work area and handling arrangement, account for the unit’s weight, and follow the generator’s fuel and service precautions. If you cannot safely carry out its prescribed positioning, have an authorized service provider install the kit. After assembly, return the unit to its specified position and refill/check oil under the generator manual before any start. Record that restoration as a separate completed task.

Inspect the whole assembly before moving it

With the engine stopped and the equipment safe to handle, check the completed assembly against the parts diagram. Confirm both wheel retention arrangements, the specified support leg and feet, and the chosen handle’s retention. Check for interference with controls, service access, exhaust and any factory guards. Resolve looseness, missing hardware or a damaged mounting point before use.

Plan the route from storage to the approved operating location. Steps, slopes, soft soil and tight doorways can defeat the purpose of a wheel kit even when it fits correctly. Do not drag a connected cord or move a running generator. The 40065 manual excludes over-the-road use; its wheels do not make the generator a trailer or provide vehicle-transport restraint.

Make the purchase decision from a complete match

A complete match has a supported generator identity, applicable date range, confirmed mounting arrangement, correct kit version and all required parts. Save those details with the receipt and installation record. For a kit sold as a replacement, check the documented replacement relationship; a familiar number in a marketplace title is not the manufacturer’s confirmation.

Send unclear fields and photos to the manufacturer to confirm the kit and manual. Seek an expressly approved solution if frame changes appear necessary. Keep the outdoor operating location and clearances in the plan; a storage enclosure does not become suitable for operation after adding wheels.
